1. Machine model: AP-18
2.Producing the curtain boxes, fish rod long boxes by crease, cut, folding, and gluing side.
2. Machine automatic feeding, creasing, cut, gluing with high efficiency in one machine.
3. Suitable for PVC APET PETG Curtain Packages boxes making.
Machine working vedio:
1: Producing the curtain boxes, fish rod long boxes by crease, cut, folding, and gluing side.
2: Machine automatic feeding, creasing, cut, gluing with high efficiency in one machine.
3: Suitable for PVC APET PETG long plastic boxes side gluing.
4: PVC PET plastic gluing by liquid glue with low cost.
5: PET boxes also can use TAIWAN hot melt system gluing the boxes side without any white marks.
6: Machine adopt Japan PANASONIC PLC, Easy operate ,Digital input ,with fast adjustment.
7: In case of scratch on the boxes the blet from double-leather material.
| Machine Model | AP-18 |
| Voltage | 380V 3 Phases 50HZ |
| Output Power | 8 KW |
| Air Compressor needed | 0.6 MPA |
| Suitable Material | PVC PETG APET |
| Material Thickness | 0.18-0.5 mm |
| Max box length | Less than 3000mm |
| Machine Speed | 2000- 3000 pieces/hour(1 000mm as sample) |
| Machine Size | 8700*1500*1670 mm(L*W*H) |
Curtain Packages boxes making machine working Process:
1. Customer need Prepare suitable width PET roll (most of long boxes by PET material), like 50*50 mm ,or 60*60 mm .that means the width is 210 mm, (50+50)*2+10 gluing area.
![IMG_8792[00_00_23][20200828-104912]](/resource/images/f103699353204815afcfcbb41bbbafc6_2.png "IMG_8792[00_00_23][20200828-104912]")
2.Flatten function: one simple device for flatten function ,better for later die cut
3. Crease line by round cutter ,material pass and machine running.
![IMG_8799[00_00_03][20200828-105230]](/resource/images/f103699353204815afcfcbb41bbbafc6_4.png "IMG_8799[00_00_03][20200828-105230]")

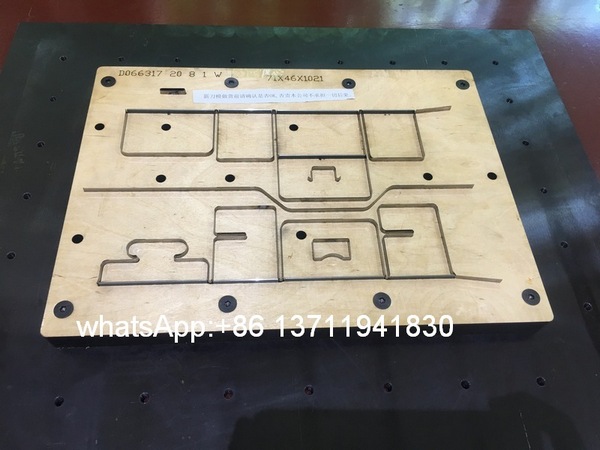

4.Die cut: boxes bottom and top design ,we say it as PET boxes ear ,that is one mold ,it can be changed by boxes design.
another design is the cutter be the hole
5. finshed sheet go through the boxes folding and gluing machine ,this part also need adjusting the width of open sheet.
![IMG_8751[20200828-105647]](/resource/images/f103699353204815afcfcbb41bbbafc6_10.png "IMG_8751[20200828-105647]")

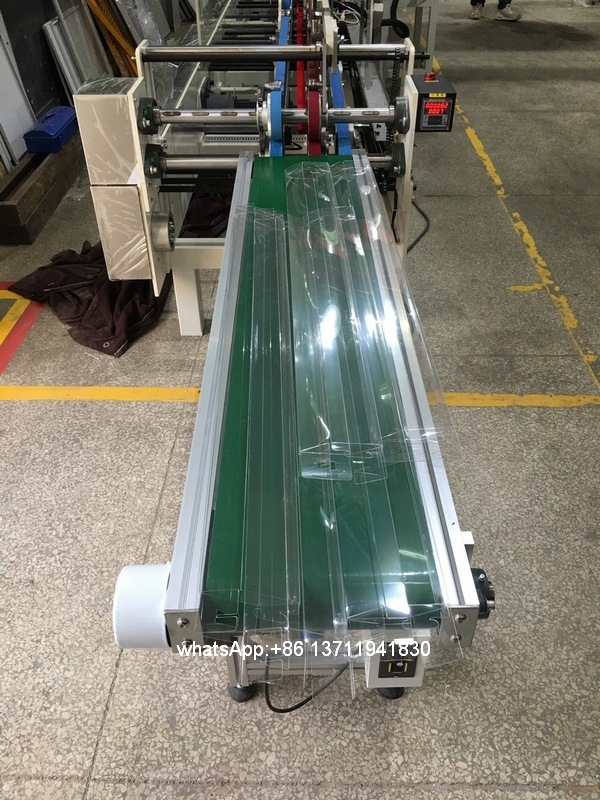

6.Machine with Hot melt system for PET boxes side pasting, without white ,clear ,beautiful.
7.PET long boxes Sample display
