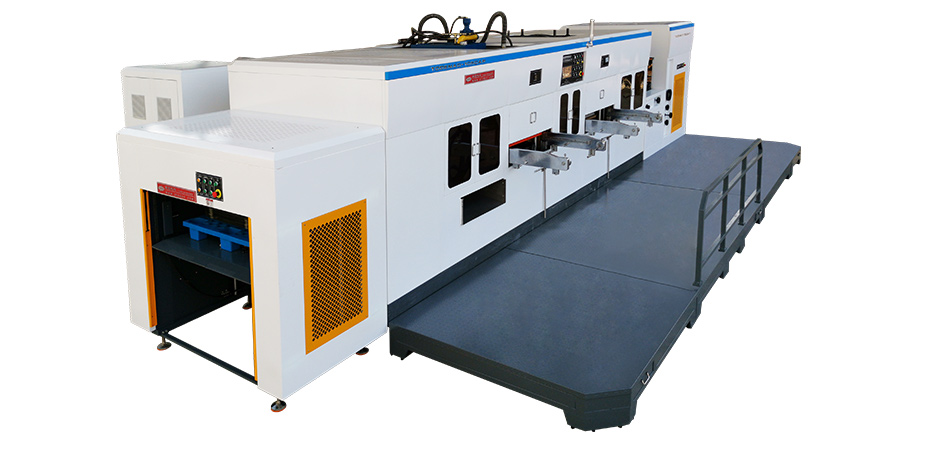

Automatic High Frequency die cut PET boxes sheet Machine

Automatic High Frequency die cut PET boxes sheet Machine

Machine model:TD-850AR

1. Automatic Plastic boves high frequency soft line crease and die cut Machine (Stamping. Crease、 Die cut. Stipping. Stacking)

2. Single pieces sheet automatic feding Unit

3. Multi special sheet row Unit

inquiry
  • Product Details
Machine Features
Automatic Receiving andStacking Type

one: Automatic Plastic boves high frequency soft line crease and die cut Machine (Stamping. Crease、 Die cut. Stipping. Stacking)

two: Single pieces sheet automatic feding Unit

three: Multi special sheet row Unit

four: Servo motor drives the horizontal precisions location double chain row

five: An independent controlled high frequency generator

six: Hydraulic pressure control high frequency soft line creasing Unit

seven: Hydraulic pressure control hot die cutting Unit

eight: servo driven suction cup stacking materail Unit

Ten: Choosing online putting UV oil, stamping,tippingclean holes,or stacking function.

Machine parameter

Machine Model AD-1050AR
Max Closing Force 7500kg
Electrode-holder plate size 780x1100mm
Working plate size 800X 1100mm
Creasing Capacity 30 linear meters(PET-0.35mm)
Max Closing Force 80000 kg
Punch-holder plate size 780X 1100mm
Working plate size 800X 1100mm
Die cut Capacity 30 linear meters(PET-0.35mm)
Max sheet size 750X 1050 mm
Output power of Generator 30 KW
Working Frequency 27.12MHz士0.6%
Feeding Voltage 380V3PH+N+G 50HZ(other voltages on request)
Compressed air pressure 0.6 Mpa
Produced ltem PVC,PETG ,PET-GAG,APET,PP(Soft Line crease Boxes)
Productivity 600-1000 pieces/hour (PET 0.2-0.8mm)
Machine Size 8000X4500x 2600mm
Machine Weight 14.8Ton

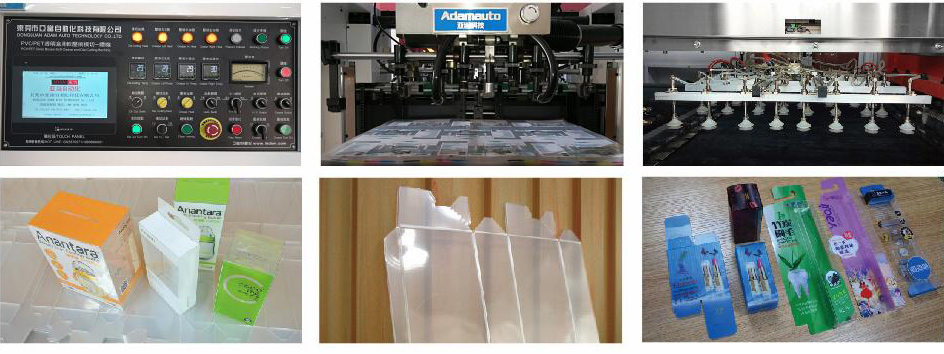

Applications

Automatic Receiving and Stacking Type
