Location: Home > Product > Plastic boxes crease and die cut Machine > Fast Speed PET boxes crease and die Cut Machine

Fast Speed PET boxes crease and die Cut Machine

Fast Speed PET boxes crease and die Cut Machine

Fast Speed PET boxes crease and die Cut Machine

Fast Speed PET boxes crease and die Cut Machine

Fast Speed PET boxes crease and die Cut Machine

Machine model:TD-850AR

1. Automatic Plastic boves high frequency soft line crease and die cut Machine (automatic feeding ,high frequency soft line crease ,outside die cut ,stacking).

2. Single pieces sheet automatic feeding Unit

3. Multi special sheet row Unit

inquiry
  • Product Details
Machine Features
Automatic Receiving and Stacking Type

Machine working veido:




one: Automatic Plastic boves high frequency soft line crease and die cut Machine (Stamping. Crease、 Die cut. Stipping. Stacking)

two: Single pieces sheet automatic feeding Unit

three: Multi special sheet row Unit

four: Servo motor drives the horizontal precisions location double chain row

five: Hydraulic pressure control high frequency soft line creasing Unit

six: Hydraulic pressure control hot die cuting Unit

seven: An independent controlled high frequency generator

eight: servo driven suction cup stacking materail Unit

Ten: Choosing online putting UV oil, stampingstipping.clean holes.or stacking functin.

Machine parameter

Machine Model TD-850AR
Max Closing Force 5000kg
Electrode-holder plate size 700X850 mm
Working plate size 730X850 mm
Creasing Capacity 24 linear meters(PET-0.35mm)
Max Closing Force 60000 kg
Punch-holder plate size 700X 850 mm
Working plate size 730X850mm
Die cut Capacity 24 linear meters(PET-0.35mm)
Max sheet size 650x800 mm
Output power of Generator 15 kw
Working Frequency 27.12MHz士0.6%
Feeding Vltage 380V3PH+N+G 50HZ(other voltages on request)
Compressed air pressure 0.6 Mpa
Produced ltem PVC,PETG ,PET-GAG,APET,PP(Soft Line crease Boxes)
Productivity 600-1000 pieces/hour (PET 0.2-0.8mm)
Machine Size 8000X4200x 2600mm
Machine Weight 13Ton
Applications

Automatic Receiving and Stacking Type

Machine working Process and details view 20230310

1.one stacking of Printed PET,APET ,PVC Rigid box material ,the thickness from 0.18-0.6 mm .The former process like ,roll to sheet cutting ,than sheet printing. the next is box shape crease and die cut.

1

2.Three-factory: the printing ,the mold, the box design. it can be 6 box design in one mold .Toden TD-850AR Machine use two separate mold ,one is for soft line crease ,another is for box outside die cut.

21

3. one whole feeding system ,Automatic Feeding Rigid PET sheet from the stacking.

7

4. The Gripper basr catch each pieces of sheet on time ,and transmit to each working head.

11

5.The control panel display working temperature ,working speed ,pressure ,output frequency and indicator lamp .and User also can get production information from the PLC ,like quantity of one order ,time setting ,total quantity and so on.

15

16

6.Machine has two seperate working head ,one is for plastic box line crease ,another is for box outside die cut.

14

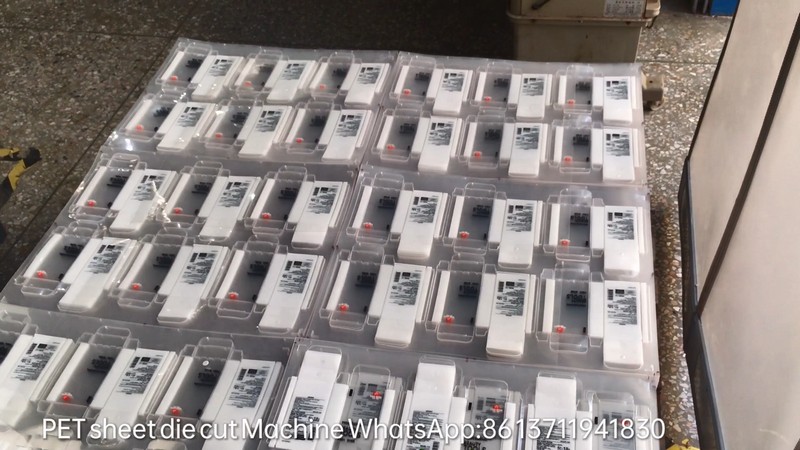

7.Automatic catch the finished box sheet ,and Automatic stacking .

18
