Machine working Process:

1.Prepare the raw material ,sheet form ,PVC PET rigid material for boxes making .it should be suitable sheet size ,PVC PET transparent one or the prined material ,both can be using on that machine ,model AT-11

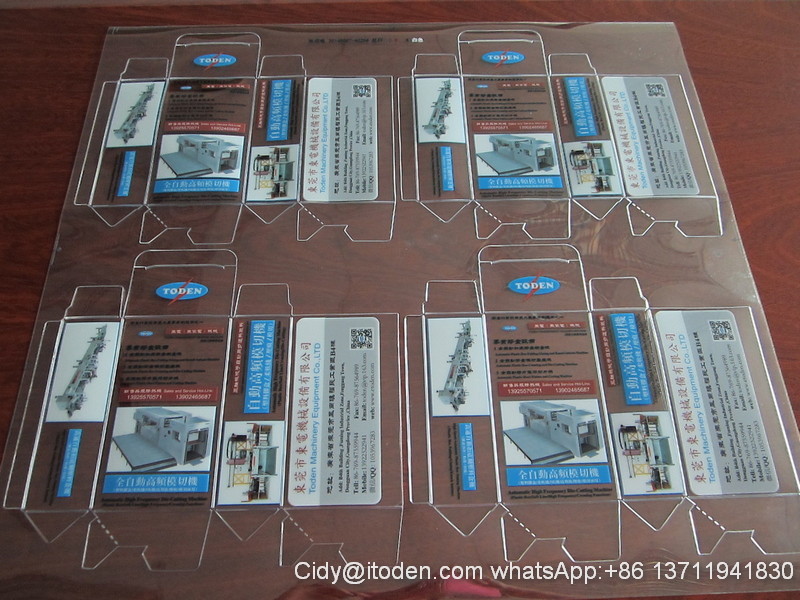

Printed sheet

Transparent clear sheet

2.Customer also need prepare two table for putting raw material and finished die cut sheet. Worker left hand in ,and worker right hand out. that will be faster speed .

3.Machine up boad is 850*700 mm ,that means the working table is 850*700 mm ,the mold also need some area for locking it on machine .so effective max boxes size is :790*640 mm.

4.Ensuring the machine productivity ,it can putting many boxes in one mold according to the boxes size and machine output pressure.

5.Machine has two table continues working ,Manual model: using for testing ,or several sample die cut ,table working by touch the button of start ;Automatic Model,using for mas production during big order .no need button control, PLC counting the working time ,and setting the working time on PLC.

6.The key point : AT-11 Plastic boxes PET PVC Sheet crease and die cut machine with high frequency system .the system can make the boxes folding line soft ,and no whtie ,no break after a long time folding ,it is easy forming 90 degree.and most high Value packages use the PET boxes by high frequency crease.
