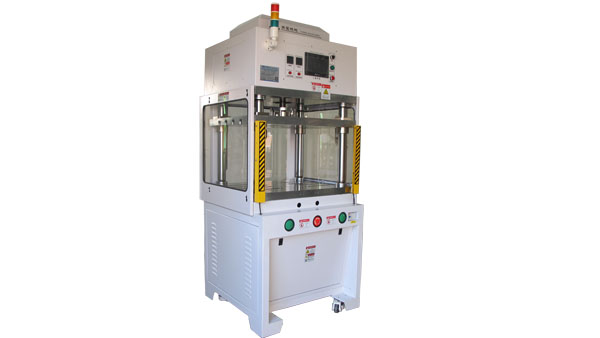

Servo Heat Press Machine
Machine Features
Toden Servo Heat Press machine Has simple outside ,control system combined by PLC with grogram and touch panel ,easy ,convinent,and working stable,Cpmpressore comes from precision sensor and analogue moudle or without sensore module,it has the advantages of fast speed and highly precision,machine driving by servo motor and heavy type ball screw ,Speed adjustable and working reliable.
| Machine model | TD-SF2000A |
| Outside size | 890*860*2060mm(L*W*H) |
| Machine Weight | 850KG |
| Up board size | 835*630 mm |
| Working table size | 835*635 mm |
| Effective size | 600*600 mm |
| Working environment | A,Normally working room without etachat gas and frequency effect. B, Floor board should be thicken and no vibration |
| Working voltage | AC220.3-phases,60HZ |
| Power | 3KW |
| Mold Height |
<=530m |
| Force Range | 10-2000kg±30% |
| Tollerance |
±2KG |
| active travel |
430 mm |
| control way |
PLC+Touch Screen |
| mold moiving Speed | 0.001-70.000mm/s (or 90.0000mm/s) |
| Sensore |
Force sensor 2000KG |
Machine details
