Automatic Sheet Make round box machine

Automatic Sheet Make round box machine

Automatic Sheet Make round box machine

Automatic Sheet Make round box machine

Model: A-1301

Function choose : ultrasonic welding/solvent gluing/UV gluing

inquiry
  • Product Details

Automatic Sheet Make round box machine

Machine Features


Automatic Cylinder side Pasting Machine ,Mode:A-1301,this machine suitable for PVC PET sheet ,automatic loading by suction nozzle .the mold diameter is from 40-160mm ,and max length is less 350 mm .Machine with needle pasting system for PVC PET material ,and PVC sheet cylinder can be totally clear .and PET a little white. other system choosing by custom ,like UV ,and ultrasonic welding.

Machine working vedio:





Machine parameter

Machine model A-1301
Outside size 2330*1110*2290 mm(L*W*H)
Machine Weight 600KG
Mold diameter 40-160 mm
Max length less than 400 mm
Working voltage AC 220V 50HZ
Power 1.5 KW
Mold Height <380m
Tolerance ±0.25KG
active travel 280 mm
control way PLC+Touch Screen
machine speed 400-500 PCS/Hour
Suitable material PVC PET 0.18-0.4 mm

Machine Working process:

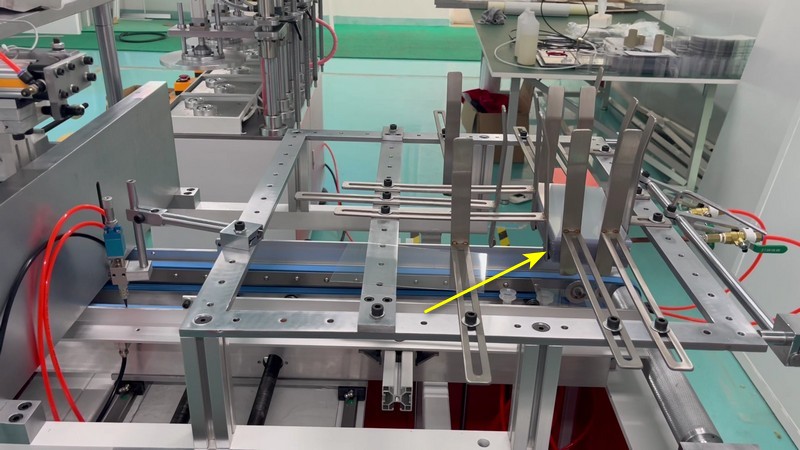

1.sheet automatic loading by 4 big suction nozzle ,and 1 small suction nozzle for single sheet.

1

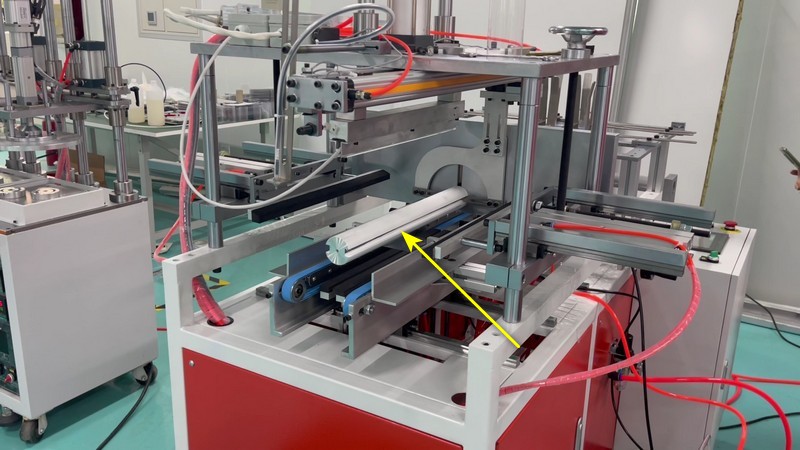

2. Machine mold:40-160 mm round cylinder, max length less than 350 mm .

2

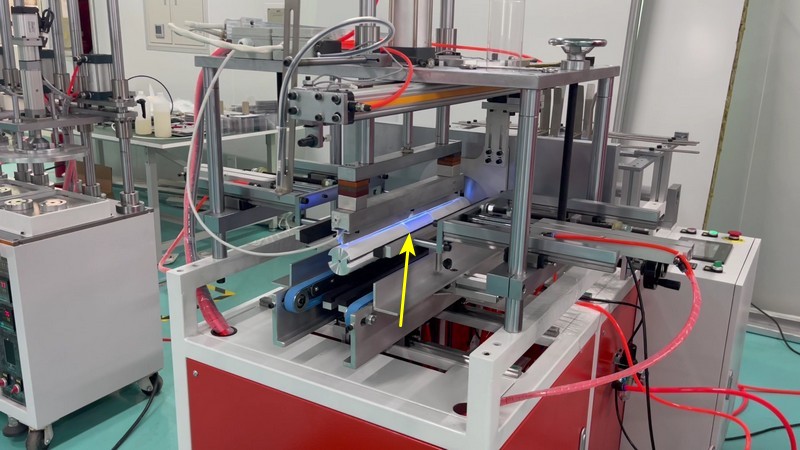

3.machine with UV system ,PET cylinder pasting by UV glue ,and dry it by UV lamp.

3

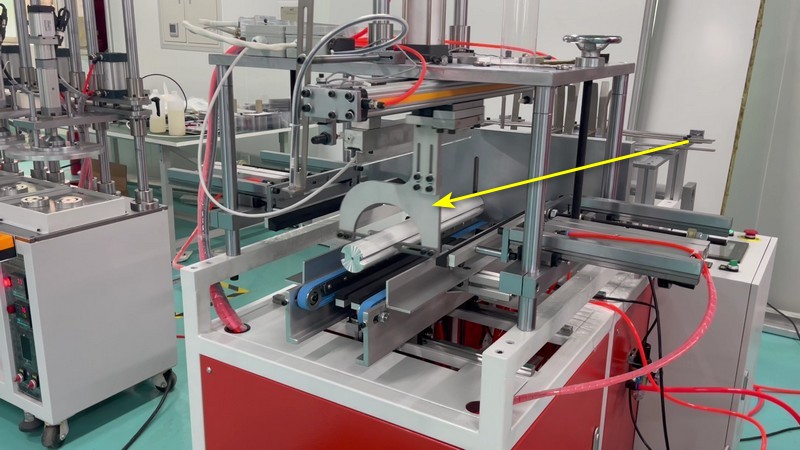

4.Automatic push out the finished PET cylinder.

4

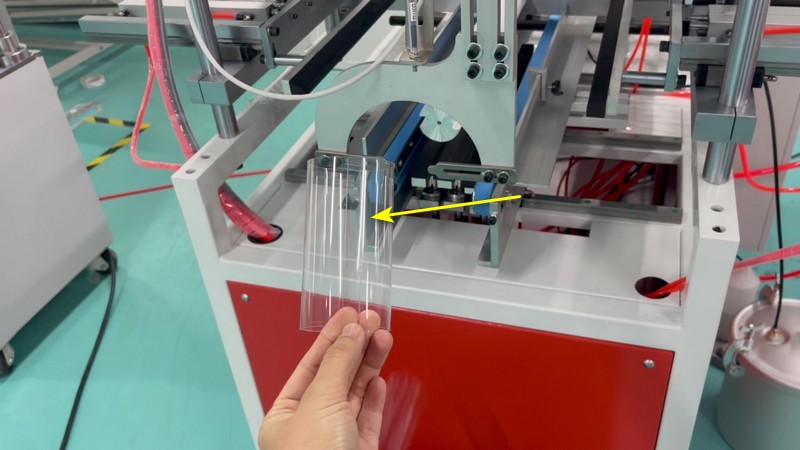

5.Finished cylinder ,PET material without white mark.

6
