Hydraulic PET Plastic boxes die cut Machine

Hydraulic PET Plastic boxes die cut Machine

Hydraulic PET Plastic boxes die cut Machine

Hydraulic PET Plastic boxes die cut Machine

Hydraulic PET Plastic boxes die cut Machine

Hydraulic PET Plastic boxes die cut Machine

Model:TD-850GY

1. one worker operate the machine.

2. Two tables continues working.

3. one machine  suitable for PVC PET sheet material.

4. Machine Speed:600-700 pieces/hour (10 seconds/2 sheet)

inquiry
  • Product Details

Hydraulic PET Plastic boxes die cut Machine

Model:TD-850GY

Machine Features

TD-850GY

Machine Features:

1.Two tables design with one operator.

2.Mold Change less than 10 minutes with fast changing mold device.

3.High Sensitive anti-sparker 5557 from America can check the over-current, Ensuring reduce the damage between mold and material.it can automatic cut off the high frequency current by the time of sparking.

4.Mold and board without any medium ensuring plate 100% flatten.

5.Plastic boxes soft line will not easy break or white ,welcome to checking and testing

6.Machine speed about 10 sconds/2 sheet.(4 small boxes in one PET sheet )

Machine parameter

Machine Mode TD-850GY
Voltage 380V 3 Phases 50HZ
Output Power 15 KW
Max Crease Pressure 60T
Air Compressor needed 0.6 MPA
Working Frequency 27.12 MHZ
Suitable Material PVCPET APET RPET GAG
Crease Board Size 850* 700 mm
material size 800*680 mm
Machine Speed 600-700 pieces/hour
Machine size 2680*1300*1990 mm (L*W*L)

Machine working steps:

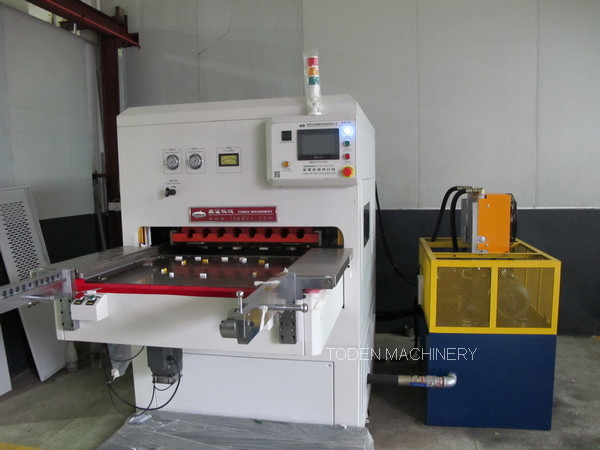

1. model :TD-850GY,this die cut machine suitable for PVC PET sheet which printed or clear sheet.

129-1

178-1

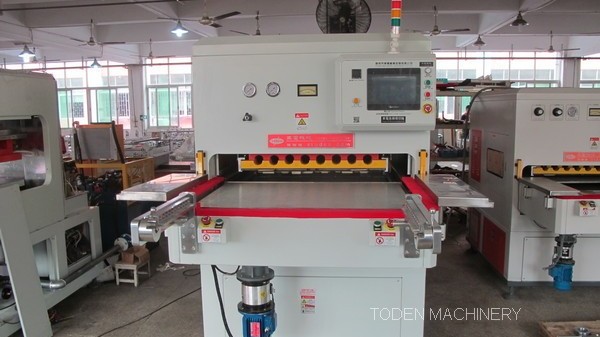

2. Hydraulic system for stable working ,and fast speed.

油压式前推压痕模切机[00_00_12][20210505-094016]

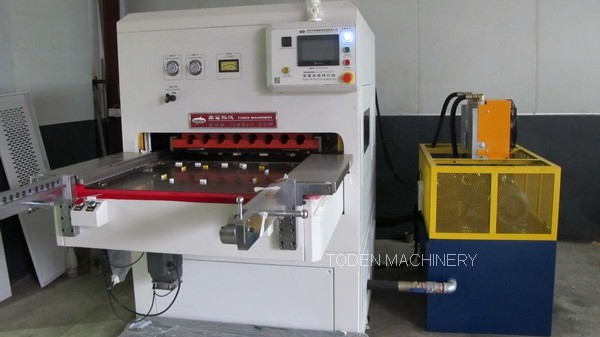

3. one worker operating the machine under automatic model ,one hand put the sheet in ,another hand taking the sheet out.

4. four boxes in one sheet. i think it is small PET printed boxes .the speed in the vedio about 10 seconds/2 pieces.

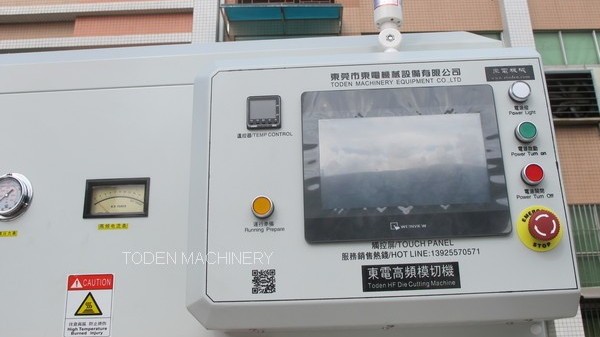

5. Setting all parameter in PLC ,like speed ,cycle time ,High frequency ,lighting ,power.

IMG_4145-1

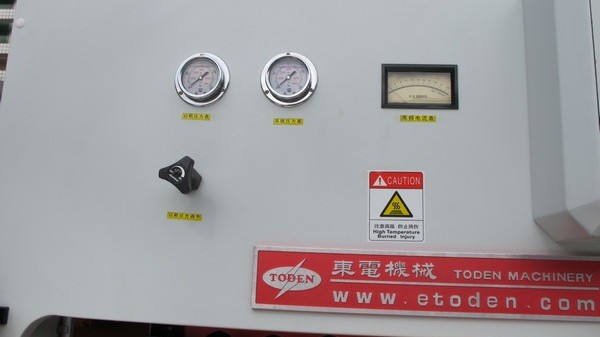

6. Two dial display the pressure of die cut and crease .

IMG_4144-1

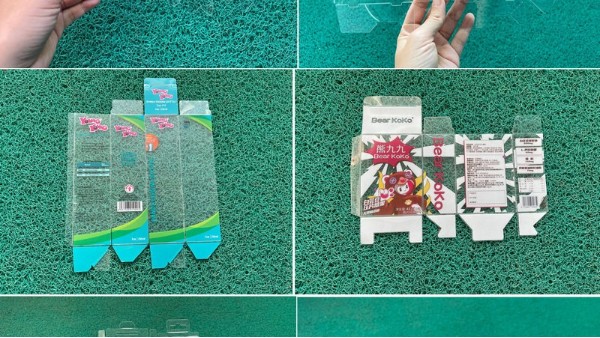

7. we normally say the Crease and die cut ,it means the line crease ,and die cut the outside of boxes.

IMG_5304-1

Machine working vedio
